AIR COMPRESSORS

Back to list

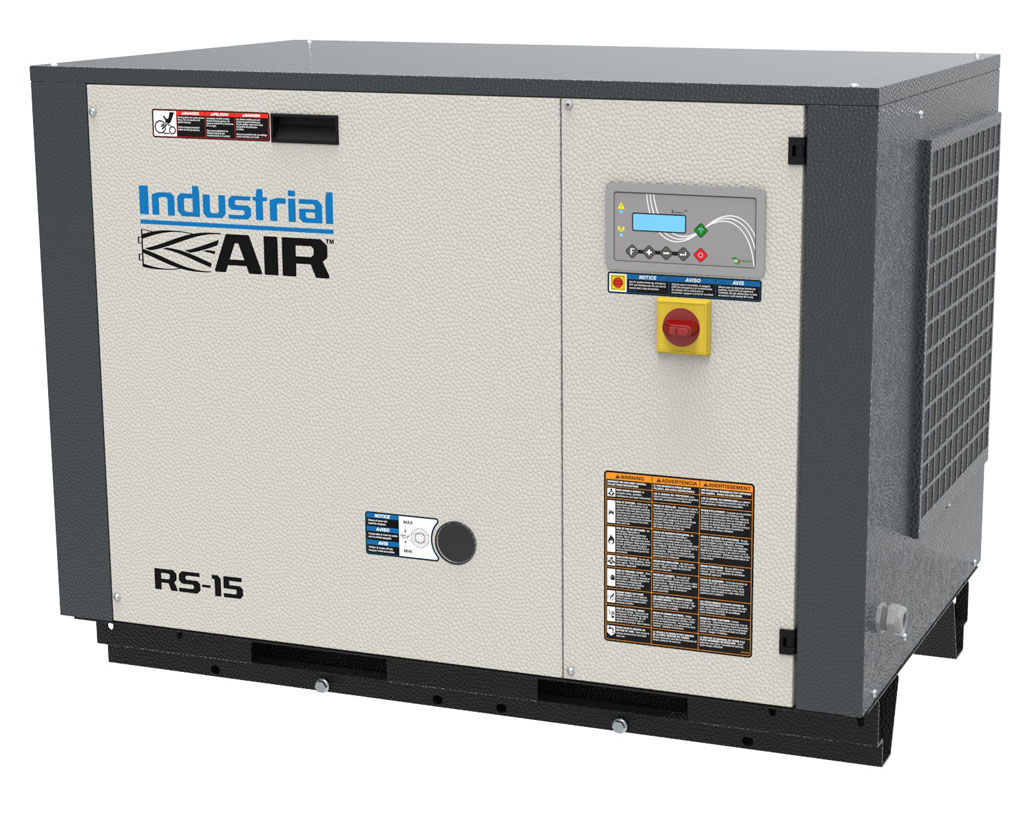

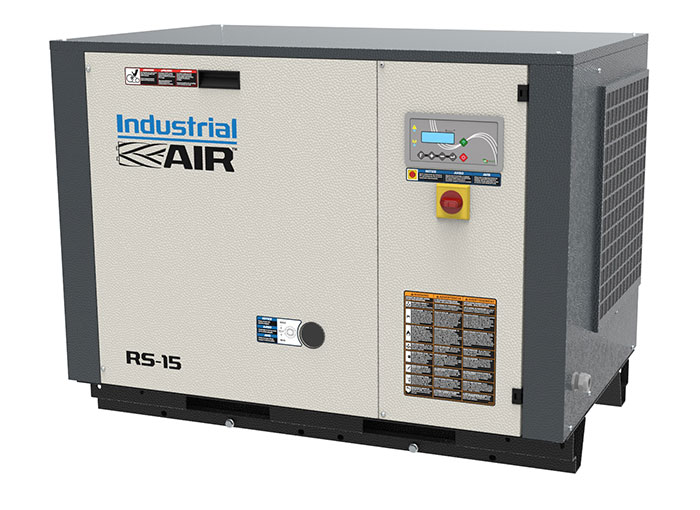

MODEL: IARS-15

ROTARY SCREW COMPRESSORS

• 15 HP
• 150 Max PSI
• 58.5 CFM @ 100 PSI
• 49.8 CFM @ 150 PSI
• 68 dB[A]
• 1/2 NPT Connection
• Three-phase motor(208/230/460V)
• Standard design allows units to be mounted to 80 or 120 gallon tanks
• 46 L x 29 D x 33 H
• 482 Weight

OPTIONS

• 80 or 120 gallon tank sizes - tanks made in USA
  (Model# IARS-15080 or IARS-15120)
• Auto Tank Drain (Model# 072-0030IA)

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

FEATURES & BENEFITS

• Thermostatically controlled fan that only runs when necessary
• Premium quality encapsulated air end provides a compact design for space savings and low noise output
• Air end is mounted on sump for fewer connection points and oil leak paths
• Poly-V drive belt. Less noise. Less vibration. Longer life
• Equipped with a cabinet pre-filter. Filters the air prior to intake to extend the life of the internal filters
• Left or right side tank air outlet
• Fan mounted on the side of cabinet for easier top access for maintenance
• User-friendly digital control panel
• Oil sight glass integrated in front panel of cabinet for easy oil level inspection
• All electrical components are UL approved
• ASME approved tank meets all safety standards

1Electric Motor
2Air Discharge Tube
3Air Inlet Filter
4Intake Valve
5Scavenger Line
6Oil Filter
7Air / Oil Separator
8Oil Sump
9Heat Exchanger
10Digital Control Panel
